The Morphing of Rogers and Berry?

July 23, 2015

The most superficial part of the linen fibre is the PCW, and that comprises hemicellulose as a major constituent. Hemicellulose has a lot of pentose sugars, which are chemically reactive,  more so than the hexose sugars of starch and cellulose, and known to enter freely into Maillard reactions. Maybe the linen provided the sugar for the Maillard reaction.

image… on the shroud (or misnoma-shroud). Colin Berry teases it out a bit for us:

This blogger has already been accused of plagiarizing Rogers’ ideas (in seeing a role for Maillard reaction products, albeit between reducing sugars and proteins of white flour, and needing an exceedingly hot iron to get the colour). Well, I’m about to make things even worse for myself – by narrowing the gap between my medieval model and the pro-authenticity 1st century tomb scenario of Rogers. It involves volatile amines, those fishy smelling things with the general formula R-NH2 (primary amine)  where R is an alkyl group, e.g. CH3, C2H5, or, if a secondary amine, R-NH-R’, or a tertiary amine,  R-N(R’)-R”. What you may ask!  We know where the amines are implicated in the Rogers’ model (putrefaction of a corpse).  How can amines be implicated in a white-flour model?

Well, it’s a long shot, but here we go.  The yellow-brown image has been described here as a Maillard reaction product, formed between reducing sugars and proteins. But there’s a problem. The “Shroud” image was tested by Adler et al for protein – none were found.  But my image appears to have two components – an outer one that looks and feels thick, and can be reduced by washing, brushing etc, and a more resistant one that survives those treatments, and seems more like an intrinsic part of the linen fibres. What might have happened to produce the latter.  Well, there’s a little protein in linen fibres, and one might propose that had reacted with reducing sugar, and that the Maillard product formed had failed to react as protein. But one instinctively dislikes qualiofying assumptions. Might there be an alternative explanation? Yes, there is. The most superficial part of the linen fibre is the PCW, and that comprises hemicellulose as a major constituent. Hemicellulose has a lot of pentose sugars, which are chemically reactive,  more so than the hexose sugars of starch and cellulose, and known to enter freely into Maillard reactions. Maybe the linen provided the sugar for the Maillard reaction. But where did the amine come from? It might have been the protein of the flour or linen, especially the epsilon amino group of lysine (not involved in peptide bond formation). But there’s an intriguing alternative. Enter volatile amines. When one adds cold  limewater to white flour there’s an immediate strong fishly odour. So there’s an amine precursor there that is easily released by alkali. Maybe it’s released by heat also, even at lower pH closer to neutrality. Maybe it’s that amine that reacts with the pentose sugars of the linen PCW to produce the ‘resistant’ image that survives washing etc, and that does NOT test positive for protein.

What might be the source of the free amine? Am not sure. It might be glutamine, with terminal -CONH2. It might be polar secondary or tertiary amine groups of phospholipids (lecithin, phosphatidylethanolamine etc).  Much food for thought (maybe a few experiments can help reduce the search options).

  1. piero
    July 23, 2015 at 4:29 am

    >The rate of decay within the human body after death
    is normally split into two distinct categories.
    >These are:
    – Autolysis: A process of self-digestion where the body’s enzymes contained within cells begin to go into a post death meltdown. The process can be speeded up by extreme heat and likewise slowed down by extreme cold.
    – Putrefaction: Bacteria that escape from the body’s intestinal tract after the deceased has died are released into the body and begin the process of literally melting the body down.
    … …
    >What is Putrefaction?
    >Putrefaction follows a predetermined timetable in nature
    and after the first 36 hours the neck, the abdomen,
    the shoulders and the head begin to turn a discoloured green.
    >This is then followed by bloating – an accumulation of gas
    that is produced by bacteria toiling away within the deceased.
    >This bloating is most visible around the face where the eyes
    and the tongue protrude as the gas inside pushes them forward. … etc. …
    (horror)…

    Link:
    http://www.exploreforensics.co.uk/the-rate-of-decay-in-a-corpse.html

    I do not think that in the cloth of the Shroud
    you can really notice the signs of advanced putrefactions.
    In any case, we never performed analyses using
    advanced microscopies (ie SPM measurements at molecular level) …

  2. July 23, 2015 at 4:55 am

    It’s not difficult to understand why putrefaction of corpses produces free amines in nose-assaulting abundance. That is due to microbial action – the bacteria have enzymes that hydolyse peptide linkages in proteins and then go on to decarboxylate the amino acid monomers to free amines (ammonia, putrescine, cadaverine etc). It’s a bit more problematical deciding how free amines can form simply by adding a weak alkali (limewater) to flour in the 14th century as distinct from 1st century model, but my nose says they do.

    As I say, it’s somewhat of a long shot to implicate a free amine in my flour/hot iron model, based purely on that fishy smell one gets on mixing flour and alkali. I might try testing flour that has been pretreated with lime, even heated (since heated flour works as well as cold flour). If the putative amine is lost, then one predicts there should be little or no linen-associated Maillard reaction if the production of a “Shroud”-like imprints really requiring a free amine to react with the PCW pentosans, as distinct from protein. There would still be an overlying brown crust from reaction between flour protein and its own reducing sugars,maybe with simpler caramelised products, but I am routinely washing the developed image with soap to remove that, focusing on what survives – a resistant fainter highly-superficial looking image attached to the linen fibres. There is of course that intriguing reference to be found on the shroud.com site (history section) to the linen having been subject to some ferocious treatments (boiling in oil etc) in an attempt to “test the permanence” of the image. Alternatively, those treatments, even if exaggerated, may have been intended to attenuate the image, making it look more ‘ghostly’.

  3. July 23, 2015 at 5:20 am

    Here’s that shroud.com quote:

    April 14, 1503 Good Friday: Exposition of the Shroud at Bourg-en-Bresse for Archduke Philip the Handsome, grand-master of Flanders, on his return from a journey to Spain. The Shroud, which has been specially brought from Chambéry, with great ceremony, by Duke Philibert of Savoy and Duchess Marguerite, is exposed on an altar in one of the great halls of the Duke’s palace. Savoy courtier Antoine de Lalaing records of the events of that day: “The day of the great and holy Friday, the Passion was preached in Monsignor’s chapel by his confessor, the duke and duchess attending. Then they went with great devotion to the market halls of the town, where a great number of people heard the Passion preached by a Cordeilier. After that three bishops showed to the public the Holy Shroud of Our Lord Jesus Christ, and after the service it was shown in Monsignor’s chapel.” Lalaing adds that the Shroud’s authenticity has been confirmed by its having been tried by fire, boiled in oil, laundered many times ‘but it was not possible to efface or remove the imprint and image.’

    Note the date, a mere 150 years or so after the first appearance of the linen “imprint and image” in western Europe (Lirey, approx 1357). Would it really have been subjected to those treatments, real or apocryphal, if there had been the slightest suspicion that it was “just a painting”? Note the use of the word “imprint”, employed also in the d’Arcis memorandum. At least the medievals could recognize and interpret a tone-reversed (“negative”) image when they saw one, an ability that has sadly been lost by 21st century historians

  4. Charles Freeman
    July 23, 2015 at 5:42 am

    ‘When one adds cold limewater to white flour there’s an immediate strong fishly odour.’
    Well, it is a herringbone weave.

    • Thomas
      July 23, 2015 at 6:05 am

      Very good.

  5. daveb of wellington nz
    July 23, 2015 at 5:48 am

    What an intriguing post and commentary. Regardless of provenance, the TSM shows no sign of putrefaction, and whether alive or dead, it would therefore seem unlikely that the amines came from a putrefying body. In the crucifixion scenario, could the amines have come from other bodily discharges, sweat and urine? Add a limestone environment, and we would seem to have the necessary alkali. Instead of wheat-sourced flour, what about other vegetation from a nearby garden placed around the body by mourners? Colin seems to imply a hot-iron being part of his process, and this would seem to be absent in the laying out of a corpse, or it resting in a tomb.

    The De Charnay family seemed to be reasonably well convinced that they had the authentic burial cloth, and if they thought that, it is hard to imagine that they would subject it to such harsh trials by ordeal as boiling it in oil, subjecting it to fire, and even laundering, and likewise the Savoy family might have a similar reluctance. One might wonder how much credence ought to be placed on Antoine de Lalaing’s reporting it as such, or was he icing the cake to make a good story out of some legend or rumours about such trials?

    • July 23, 2015 at 6:14 am

      The details of the punishment could be complete fiction, as you say. But they would not have been recounted, even as after-dinner small talk, if the linen still looked as if conventionally painted a mere 150 years after its first display. Yes, d’Arcis also used the word “painted”, but beware magazine articles that briefly attribute that same word to Bishop Pierre d’Arcis, but omit to mention that he said it was “cunningly” painted, a “sleight of hand” etc,none of which justifies the conclusion “just a painting”, far less the sledge-hammered insertion of that totally misguided notion into the public domain.

  6. Yannick Clément
    July 23, 2015 at 8:45 am

    Fact #1 : Rogers was clear about the fact that a layer of carbohydrate impurities would have been much easier to color than the linen fiber itself (which includes the primary cell wall).
    Fact #2 : Rogers was clear about the fact that the color did not resides at all in the structure of the fiber itself (which includes the primary cell wall) but only on a thin layer of impurities that are not part of the fiber.
    Fact #3 : ALL the linen fibers that composed the Shroud (and not just the ones located on the top-surface of the cloth) got a primary cell wall, while only those located on the top-surface got a thin layer of impurities. Taking this into account, which hypothesis is the most able to explain the fact that, on the Shroud, the color is only restricted to the first few fibers that are located on the top-surface of the cloth and so, no matter if this was a zone of direct-contact with the body or not? The answer is EVIDENT : the thin layer of impurities is the only one that is able to give a rational explanation for this very bizarre feature of the Shroud image!
    Fact #4 : This whole hypothesis of the primary cell wall has been first published by Fanti et al. in a paper they wrote in 2010, which is less than 2 years after the publication of Rogers book, in which he showed the result of an experiment he did with Corona dicharge (which is, as you know, Fanti’s hypothesis for image formation). What was the result my friends? A color residing solely inside the primary cell wall!!! Is it possible that there’s a link between this experiment of Rogers and Fanti’s claim concerning the primary cell wall (which he makes less than 2 years after the publication of Rogers’ book)? I really think so!

    • Yannick Clément
      July 23, 2015 at 8:50 am

      I forgot to add this concerning fact #4: In his book, Rogers was clear about the fact that the color result he got with a Corona discharge (i.e. result showing a color residing solely inside the most superficial layer of the fiber, which is made of hemicellulose and other things) IS NOT THE SAME as the color that compose the Shroud image. I repeat: NOT THE SAME and therefore, if we believe Rogers (who experiment it for real), the hypothesis of a Corona discharge must be discard.

    • Yannick Clément
      July 23, 2015 at 10:13 am

      One last comment (important): The color result obtained by Rogers with a Corona discharge (which he clearly define as not representative of the Shroud image) is pretty much the same as what Di Lazzaro and his team were able to get with the help of UV lasers. Taking this into account, if such a result (i.e. a color restricted to the most external part of the fiber) was, for Rogers, clearly different than the colored fibers he saw on the Shroud and enough to discard Fanti’s hypothesis about a Corona discharge, then I think we can also discard Di Lazzaro’s hypothesis, using the same base. Rogers would surely have done so…

    • Yannick Clément
      July 23, 2015 at 10:56 am

      One thing I would add in order to stimulate the reflection of some people… We know for a fact that, everywhere in the image area on the Shroud, the image looks like a very thin « film » of color that got, more or less, the same thin degree of thickness.
      What chromophore hypothesis look the most like this description? Evidently, it is the one proposed by Rogers involving a very thin layer of carbohydrate impurities that would have been concentrated on the very top-surface of the cloth after its final washing and drying and which would have been the only material colored by the image formation process.
      Meditate about that and you’ll see that the hypothesis involving the primary cell wall do not fit as well as this (for the simple reason that there is a primary cell wall on-top of each single fiber that compose the Shroud (and not just the ones located on the top-surface)…

    • Yannick Clément
      July 23, 2015 at 12:00 pm

      For those who wonder where in his book Rogers is talking about a color restricted to the most superficial part of the fiber after it has been submitted to a Corona discharge, you can see this in page 86 of the PDF version of his book under the figure X-7. Here’s what he wrote: “A single fiber from the center of figure 2 in water. Hemicelluloses and pectins have been oxidized (note: here, Rogers don’t use the term “primary cell wall”, but that’s what he meant anyway), leaving most of the more stable cellulose. The spiral structure of the cellulose ultimate cells is visible.”

      If we believe Rogers, such a result, which look pretty much like Di Lazzaro’s result while using a UV laser, is NOT THE SAME as the color found in the image area on the Shroud.

      Note that, in this same section, Rogers wrote: “the Shroud provides its own internal standard for testing this effect. Image and non-image fibers show exactly the same amount of
      electromagnetic-radiation damage. ” Clearly, for Rogers, this kind of color located in the primary cell wall of the fiber is obviously showing an excess of electromagnetic-radiation damage in comparison to the non-image fibers of the Shroud that he analyzed.

      Taking this into account, I think we can reject Fanti and Di Lazzaro’s hypotheses for good, unless they could provide clear evidence that one of their energetic mechanism could be able to only color a thin layer of carbohydrate impurities while leaving the whole fiber underneath it uncolored, which doesn’t seem to be possible (again, if we believe Rogers).

  7. anoxie
    July 23, 2015 at 11:45 am

    chemical reaction : checked
    volatile amines : checked

    what’s next to make things worse?

    temperature? does Colin still think there is no Maillard reaction at room temperature?

    I’ve been arguing for months with Colin about his scorch hypothesis vs Rogers’, i won’t comment on this shameless counterfeit. But please Colin, do make things worse for yourself, there’s plenty of room to improve your latest theory, help yourself:

    https://shroudstory.com/2012/07/30/asking-thibault-for-more-details-concerning-rogers-hypothesis/

    • July 23, 2015 at 11:55 am

      “…does Colin still think there is no Maillard reaction at room temperature?”

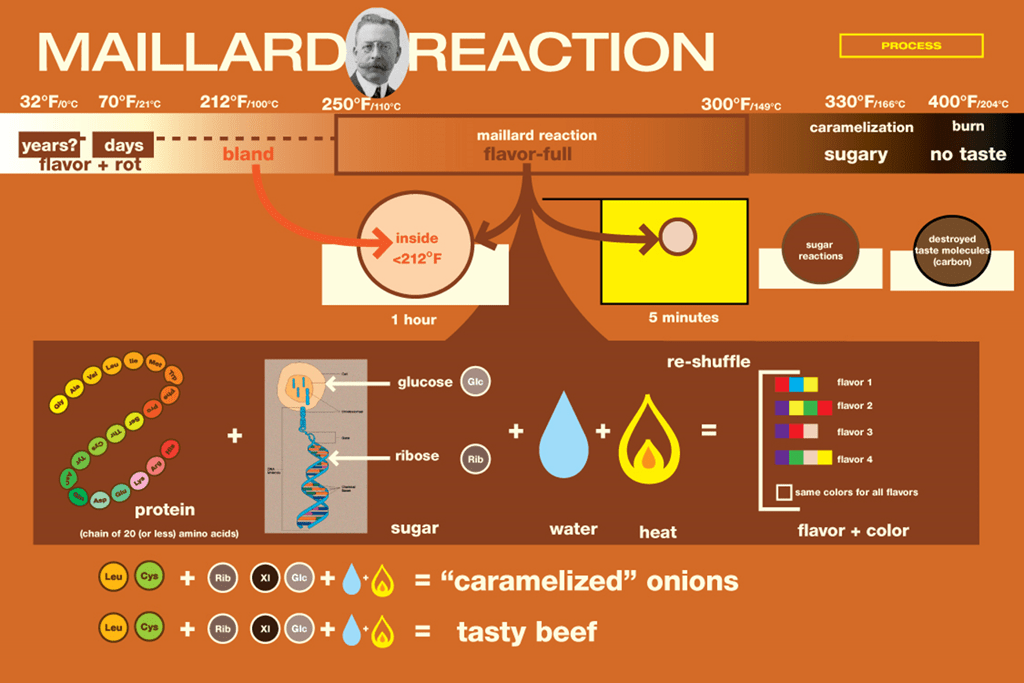

      I suggest troll anoxie takes a look at the graphic that accompanies Dan’s posting (click to enlarge) and examines the time/temperature dependence of typical Maillard reactions, assuming she’s capable of examining anything in detail.

      Nuff said. This blogger does not engage with trolls.

      • anoxie
        July 23, 2015 at 12:11 pm

        I suggest you to read your comments explaining why Maillard reaction is “thermodynamically” not possible at room temperature.

        Glad to know you’ve read thermodynamics 101 since then.

        • July 23, 2015 at 12:21 pm

          I recently penned a reply to an email request from Hugh Farey, setting out reasons why Maillard reactions are under thermodynamic rather than, or in addition to kinetic control. If troll anoxie wishes to trash my comments here with her sniping, then troll anoxie needs to abandon her cover, come out in the open, and state her case in detail. Sniping from cover against a blogger posting under his real name, with a professional reputation to uphold and defend, is trolling.

        • Dan
          July 23, 2015 at 12:25 pm

          Easy!

        • anoxie
          July 23, 2015 at 12:31 pm

          You’re responsible for your comments, sure:

          a: i thought the accusations of trolling were no longer tolerated

          b: you can post under a real name, with a professional reputation, and still, be wrong.

      • Yannick Clément
        July 23, 2015 at 12:14 pm

        Rogers did show through a real lab experiment that Maillard reactions coming from ammonia entering in contact with a layer of carbohydrate impurities located on-top of some linen fibers could occur at room temperature. He used the baking technique (well-known technique that simulate ageing), which is when he obtained a yellow color similar to the Shroud image, but prior to this, some light yellow color was visible on his sample, proving that Maillard reactions can occured at room temperature.

        Here’s the exact quote from Rogers: ” a very light colour
        could be observed on the top surface after standing 24 hours at room temperature.”

        To use Anoxie’s expression: CHECKED.

  8. Hugh Farey
    July 23, 2015 at 12:19 pm

    Facts #1, #2, #3, #4. Yes, Rogers was clear about a lot of things which are a lot less clear to others, and which he only partially substantiated.The ‘thin layer of impurities’ which only resides on the crowns of the fibres does provide a reasonable explanation of why vapours emanating from the body would only discolour the crowns of the fibres. However, Rogers’s attempt to achieve his ‘thin layer of impurities’ by means of an evaporation gradient has not been satisfactorily demonstrated, and the uniform source of adequate vapours from all parts of the body has neither been demonstrated nor satisfactorily explained. Rogers’s ‘thin layer of impurities’ contradicts the findings of other scientists, who didn’t observe starch, and who did observe corroded fibres. Rogers explanation that these only consisted of his ‘thin layer’ cracking off is naive.

    Rogers’s critique of coronal discharge consisted of carrying out his own experiments ad finding them unsatisfactory, which is fair enough. However, his experiments are not comparable to Giulio Fanti’s, and therefore his comparisons about colour and corrosion are not necessarily valid. I do note that he says: “Even a short exposure will erode the surface of flax fibers. No such changes can be observed on Shroud fibers.” In fact this was exactly what was observed by Heller and Adler.

    If a thin film of impurities is necessary, or a discolouration only of the crowns of the threads of the cloth, then some form of contact, whether by acidified paint, or wheat flour paste, or even a hot bas relief, is far more likely than evaporated dextrin.

    It may, after all, be that some of Rogers’s ideas turn out to be part of the explanation for the image on the Shroud, but there is a great deal more to be done before they can generally be accepted as confidently as Yannick supposes.

    • Yannick Clément
      July 23, 2015 at 12:47 pm

      All I say is that the hypothesis of Rogers is far more credible and possible than those proposed by Fanti and Di Lazzaro. I don’t say that it is 100% correct in the form he described it, but I know that we cannot, for the moment, discard it. More researches are needed.

      BTW, Rogers’ explanation for the craking (which was wrongly understood by Adler as corrosion) is not naive at all. It is simply the normal consequence of a dehydration process instead of an oxidation process and such a process fits with Maillard reactions and not with any process involving an intense burst of energy. Note that all the data coming from the blood support much more this kind of mild process (i.e. dehydration instead of oxidation) that can happen at normal temperature…

    • Dan
      July 23, 2015 at 2:02 pm

      Very well said!!!

  9. July 23, 2015 at 12:49 pm

    It’s high time Dan Porter and his site cleaned up its act. Kindly cease raiding my site for content, then exposing this blogger and his candid views to protected trolls like anoxie.

    • July 23, 2015 at 1:48 pm

      Fair point. Dan, you at least could redact the personal bowshots in Anoxie’s otherwise interesting posts. You do it to others when they stray into ad hom attacks. More leeway is acceptable to people who do not post anonymously but Anoxie chooses otherwise. I don’t expect that everyone is suddenly going to be singing Kumbayah together, but this post was very fruitful until the snide asides started.

      • Dan
        July 23, 2015 at 2:00 pm

        Redacting is fine at home with a laptop. It is not when I’m using a phone. And while we are on the subject someone else, lower in the alphabet, is close to getting the boot if he isn’t careful. I’m not looking for Jambalaya, just calm. This is an important topic. What Colin has to say is important. Voice to text not checked.

        • Dan
          July 23, 2015 at 2:01 pm

          That was Kumbayah not Jambalaya. Siri isn’t perfect.

      • July 23, 2015 at 2:45 pm

        Now I’m craving jambalaya, thanks Dan! And your point about moderating on the fly via a phone is well taken.

        • July 23, 2015 at 3:33 pm

          It takes only one troll to destroy a thread. Not a lot of people know that (except the troll)..;.

  10. Hugh Farey
    July 23, 2015 at 1:42 pm

    “I know that we cannot, for the moment, discard it. More researches are needed.”
    Fair enough.

    • Yannick Clément
      July 23, 2015 at 2:02 pm

      At least we agree about that… BTW, the same is true for Fanti and Di Lazzaro! If they can do more test in order to see if their high-energetic mechanisms can produce a color only restricted to a layer of impurities while leaving the underneath fiber intact, this would be interesting. But seriously, I really doubt they can achieve this with… I would also like to see Di Lazzaro answering the questions I asked the other day.

  11. daveb of wellington nz
    July 23, 2015 at 3:41 pm

    My recollection of ancient production of linen is that the hanks of yarn were hung, perhaps on trees, bushes or racks, and that the hypothesis for a film layer (starch, saccharides) developing, was caused by evaporation. Under that scenario, the film would then develop on the outermost fibrils of the yarn, so that following weaving of the cloth, this notional film would then be evident more or less uniformly on the surface of the cloth, regardless of the final location of particular threads. However it is evident that the image is confined only to the crowns of the thread and not elsewhere, such as the valleys and interstices.

    In medieval times, to obtain a more uniform colour, the practice grew, particularly in the Low Countries, of postponing bleaching to after weaving of the cloth, which was then spread out in the fields to dry. Under that scenario, the evaporation would then more likely concentrate the film to be confined to the crowns. If the image resides only on a film, as postulated by Rogers, then that would tend to suggest that the whole cloth would have been bleached, rather than the hanks of yarn.

    Adler et al, seemed unable to detect any such film layer, and therefore postulated that the image resided on the PCW. An alternative postulate would be that the reason for image concentration on the crowns would be the result of some kind of quasi-contact process.

    Summarising, if the image resides in a film, as postulated by Rogers, then its concentration would tend to suggest a medieval provenance; If it is on the PCW, then a kind of contact process would seem to be involved. There has to be a reason why the image is confined to the crowns.

  12. July 23, 2015 at 3:53 pm

    Are we supposed to be impressed with anoxie’s steady stream of toxic comment, unsupported by fact?

    Dan – I beg you. Give the lady a guest posting. Let her spell out her views in detail. In the meantime, place a block on her steady stream of poison. She is the antithesis of how a web forum is supposed to operate. Kindly educate her – or show her the door…

  13. anoxie
    July 24, 2015 at 12:13 am

    “Are we supposed to be impressed with anoxie’s steady stream of toxic comment, unsupported by fact?”

    Here is what you wrote about Maillard reaction and thermodynamics:

    https://shroudstory.com/2012/08/11/colin-berry-so-how-could-ray-rogers-have-got-it-so-wrong/

    Where is the stream of poison? Who is the man hitting a professional scientist, unsupported by fact?

  14. July 24, 2015 at 1:37 am

    As I say, i don’t engage with trolls as a matter of principle. Note however that the new link was to a posting that appeared on this site almost three years ago. It was one that followed the site owner’s MO of cut-and-paste from someone else’s site (mine) of a selected passage, followed by a selected passage from that of Ray Rogers (RIP). Comments appeared, some critical, from folk who clearly had read only what was in front of them, who hadn’t bothered to read my posting in full. My response? To provide a relevant link to my site. Dan’s response? To delete that link and comment. When I then commented on the missing link his curt reply was that he did not accept link-only comments on his site.

    So Dan Porter is quite happy to mine other folk’s site for content – selected passages thereof – and then set them up in contest with another scientist (dead). He then expects the author to respond to criticism that appears on his site, much of which is clearly uninformed, coming from folk who cannot be bothered to check what was written on the primary site.

    This is bad, bad netiquette, as I have said on so many previous occasions. There’s a whole raft of reasons why Rogers’ experiments are not valid if claiming to be (a) a simple unassisted Maillard reaction or (b) an unassisted Maillard reaction that could occur on the linen enveloping a recently interred body. There’s more than one way of assisting a Maillard reaction, as I’ve set out previously (raise temperature, raise pH, e.g. with excess ammonia, use highly degraded starch – more sugar than starch – instead of starch per se).

    However, this is neither the time nor (arguably) the place to be discussing the detailed science. I may add a section to my current posting, despite its length. My site is a diary – not a political manifesto. Repeat: I do not engage with trolls. Nor do I respond to criticism on sites that tolerate trolls.
